Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NC3FXX-WT | |
|---|---|
DigiKey Part Number | 6473-NC3FXX-WT-ND |
Manufacturer | |
Manufacturer Product Number | NC3FXX-WT |
Description | CABLE END XX SERIES 3 PIN FEMALE |
Manufacturer Standard Lead Time | 14 Weeks |
Customer Reference | |
Detailed Description | 3 Position Circular Connector Plug, Female Sockets Solder Cup |

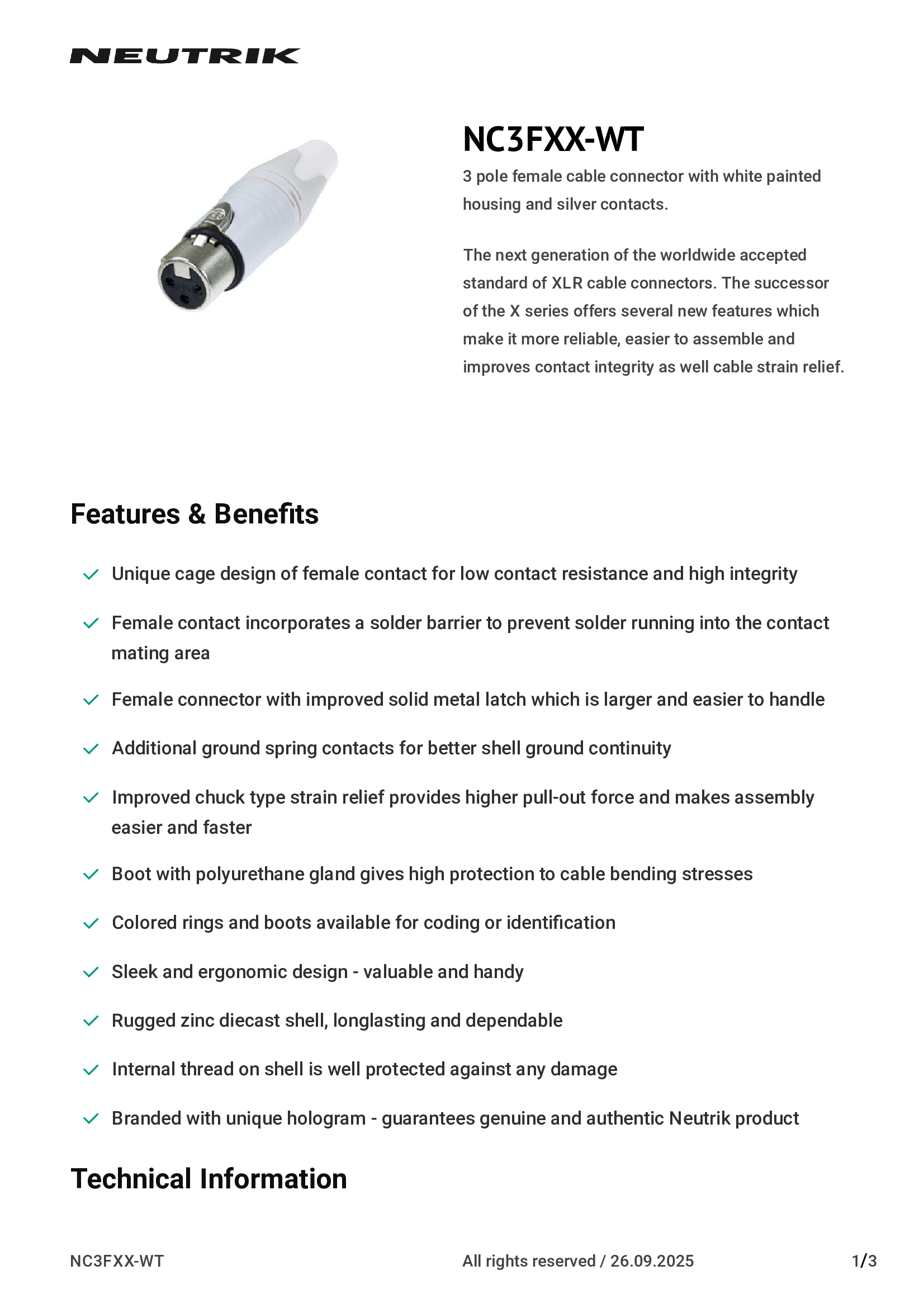

Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Contact Finish - Mating Silver |
Mfr | Color Silver |
Series | Ingress Protection IP40 |
Packaging Bulk | Material Flammability Rating UL94 V-0 |
Part Status Active | Features Backshell |
Connector Type | Shielding |
Number of Positions 3 | Current Rating (Amps) 16A |
Shell Size - Insert XLR | Voltage Rating 50V |
Mounting Type Free Hanging (In-Line) | Cable Opening 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
Termination Solder Cup | Operating Temperature -30°C ~ 80°C |
Fastening Type Latch Lock | Backshell Material, Plating Zinc Die Cast |
Orientation N (Normal) | Contact Material Bronze |
Primary Material Metal | Contact Finish Thickness - Mating 78.7µin (2.00µm) |
Shell Material Zinc Die Cast | Insert Material Polyamide (PA66), Nylon 6/6 |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
In-Stock: 100
Check for Additional Incoming Stock
Quantity
All prices are in USD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 100 | $7.96590 | $796.59 |
| 200 | $7.58585 | $1,517.17 |
| 300 | $7.37203 | $2,211.61 |
| 500 | $7.11134 | $3,555.67 |
| 700 | $6.94464 | $4,861.25 |
| 1,000 | $6.77228 | $6,772.28 |
Tariff Status: Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
