Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NC3MXX-WOB | |
|---|---|
DigiKey Part Number | 6473-NC3MXX-WOB-ND |
Manufacturer | |
Manufacturer Product Number | NC3MXX-WOB |
Description | CABLE END XX SERIES 3 PIN MALE - |
Manufacturer Standard Lead Time | 14 Weeks |
Customer Reference | |
Detailed Description | 3 Position Circular Connector Plug, Male Pins Solder Cup |

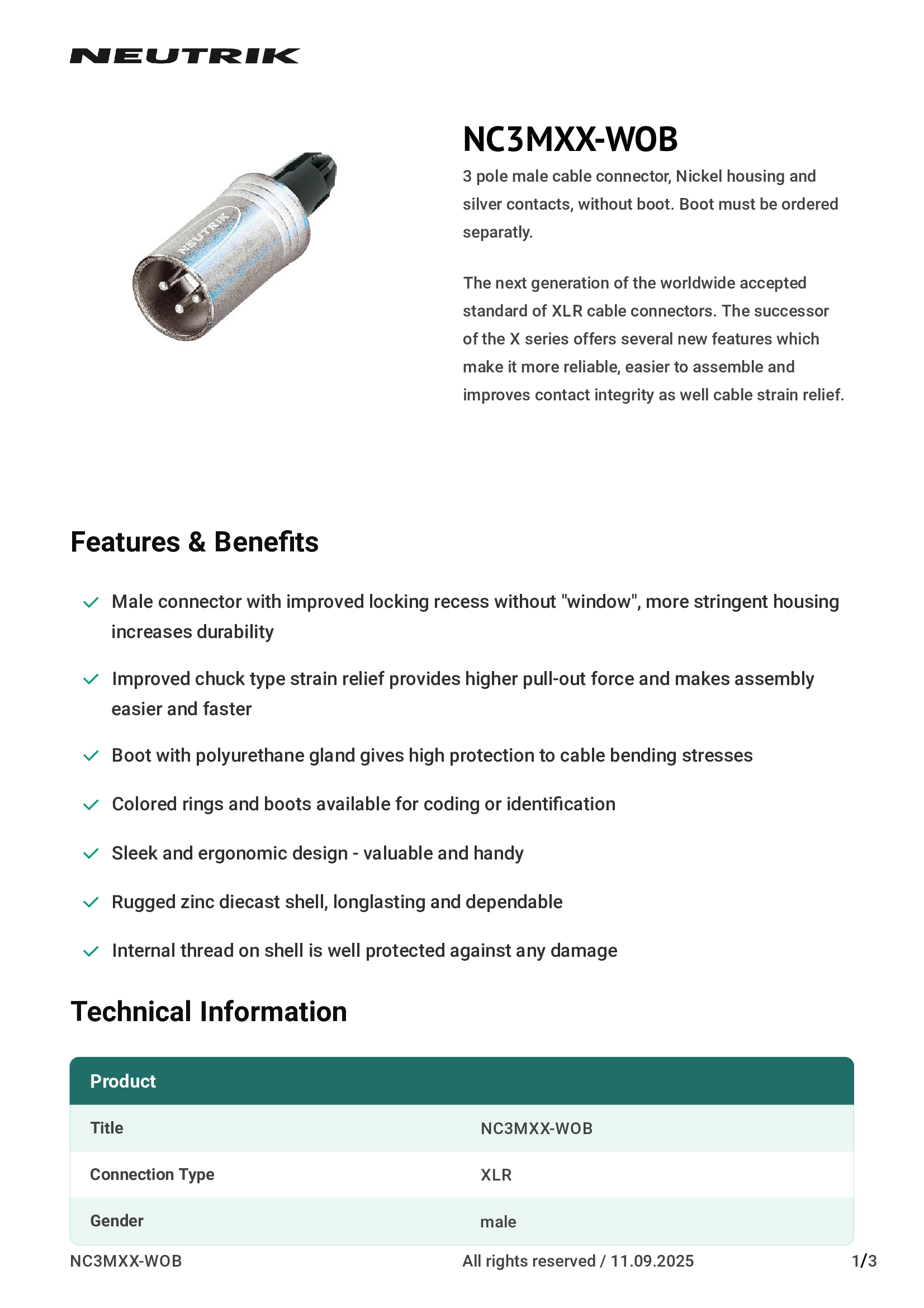

Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Contact Finish - Mating Silver |
Mfr | Color Silver |
Series | Ingress Protection IP40 |
Packaging Bulk | Material Flammability Rating UL94 V-0 |
Part Status Active | Features Backshell |
Connector Type | Shielding |
Number of Positions 3 | Current Rating (Amps) 16A |
Shell Size - Insert XLR | Voltage Rating 50V |
Mounting Type Free Hanging (In-Line) | Cable Opening 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
Termination Solder Cup | Operating Temperature -30°C ~ 80°C |
Fastening Type Latch Lock | Backshell Material, Plating Zinc Die Cast, Nickel |
Orientation N (Normal) | Contact Material Brass |
Primary Material Metal | Contact Finish Thickness - Mating 78.7µin (2.00µm) |
Shell Material Zinc Die Cast | Insert Material Polyamide (PA66), Nylon 6/6 |
Shell Finish Nickel |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
In-Stock: 100
Check for Additional Incoming Stock
Quantity
All prices are in USD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 100 | $3.34780 | $334.78 |
| 200 | $3.18800 | $637.60 |
| 300 | $3.09810 | $929.43 |
| 500 | $2.98844 | $1,494.22 |
| 700 | $2.91836 | $2,042.85 |
| 1,000 | $2.84589 | $2,845.89 |
Tariff Status: Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
