NC4FX-B | |
|---|---|
DigiKey Part Number | 6473-NC4FX-B-ND |
Manufacturer | |
Manufacturer Product Number | NC4FX-B |
Description | CABLE END X SERIES 4 PIN FEMALE |
Customer Reference | |
Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup |

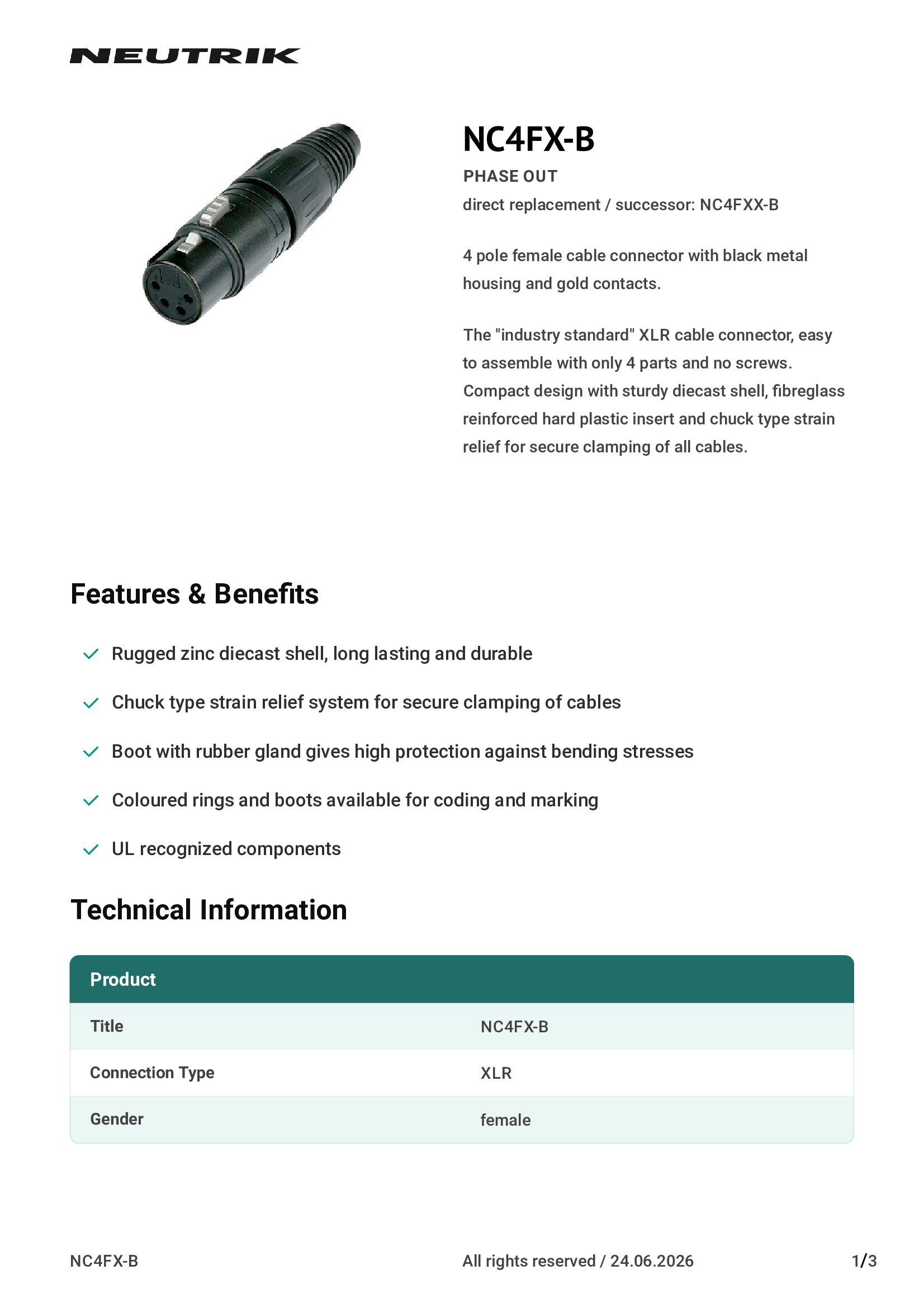

Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Contact Finish - Mating Gold |
Mfr | Color Black |
Series | Ingress Protection IP40 |
Packaging Bulk | Material Flammability Rating UL94 V-0 |
Part Status Obsolete | Features Backshell |
Connector Type | Shielding |
Number of Positions 4 | Current Rating (Amps) 10A |
Shell Size - Insert XLR | Voltage Rating 50V |
Mounting Type Free Hanging (In-Line) | Cable Opening 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
Termination Solder Cup | Operating Temperature -30°C ~ 80°C |
Fastening Type Latch Lock | Backshell Material, Plating Zinc Die Cast, Black Chromium |
Orientation N (Normal) | Contact Material Brass |
Primary Material Metal | Contact Finish Thickness - Mating 7.87µin (0.200µm) |
Shell Material Zinc Die Cast | Insert Material Polyamide (PA66), Nylon 6/6 |
Shell Finish Black Chromium |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
Substitutes (2)
| Part Number | Manufacturer | Quantity Available | DigiKey Part Number | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| NC4FXX-B | Neutrik Americas, Inc. | 56 | 6473-NC4FXX-B-ND | $10.99000 | Parametric Equivalent |
| NC4FXX-BAG | Neutrik Americas, Inc. | 41 | 6473-NC4FXX-BAG-ND | $9.80000 | Parametric Equivalent |
In-Stock: 191
Check for Additional Incoming Stock
Quantity
All prices are in USD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $11.56000 | $11.56 |
| 10 | $9.82300 | $98.23 |
| 25 | $9.20800 | $230.20 |
| 50 | $8.76840 | $438.42 |
| 100 | $8.34990 | $834.99 |
