Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NC4FX-TOP | |
|---|---|
DigiKey Part Number | 6473-NC4FX-TOP-ND |
Manufacturer | |
Manufacturer Product Number | NC4FX-TOP |
Description | CABLE END TOP SERIES 4 PIN FEMAL |
Manufacturer Standard Lead Time | 14 Weeks |
Customer Reference | |
Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup |

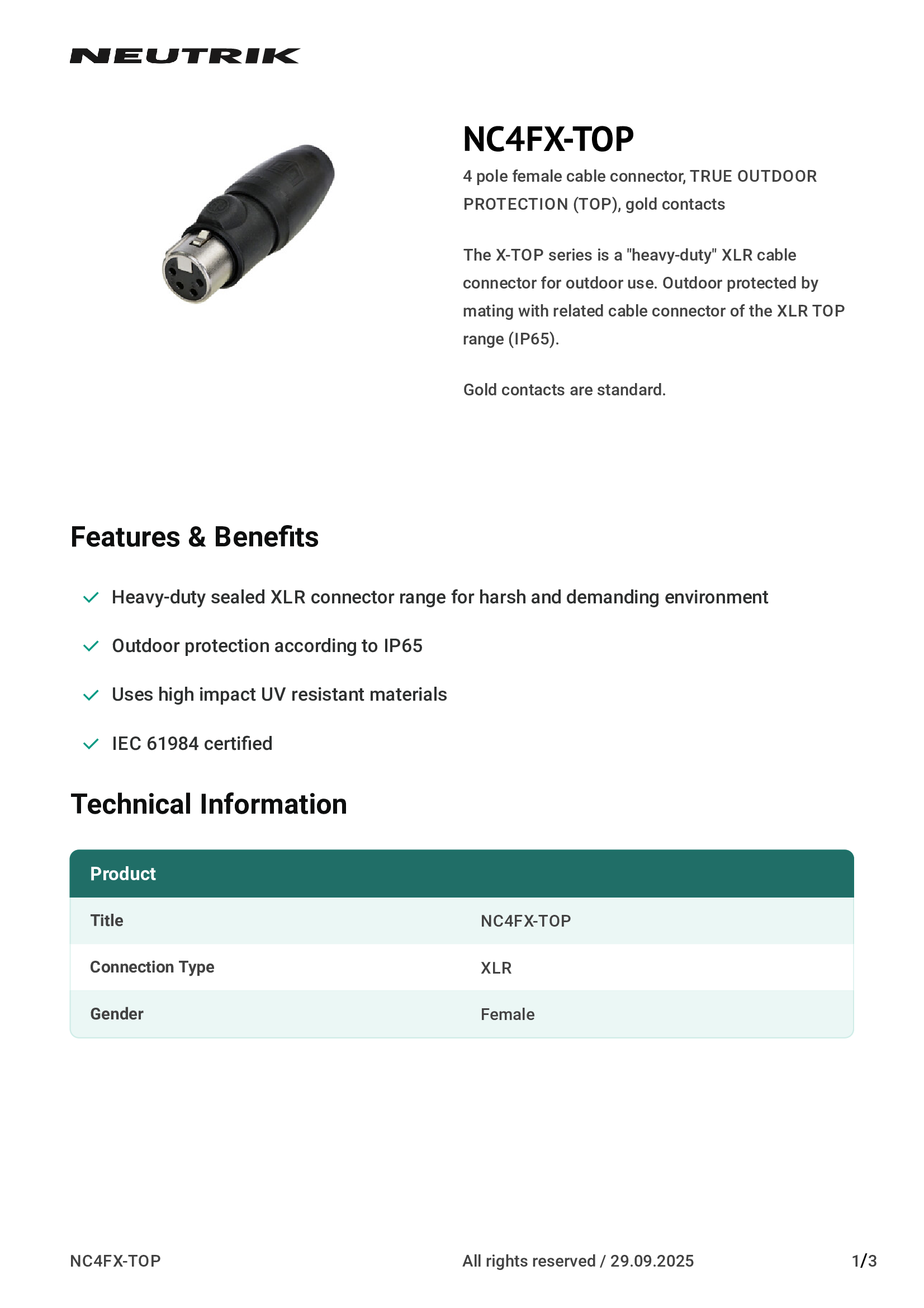

Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Shell Finish Nickel |
Mfr | Contact Finish - Mating Gold |
Series | Color Silver |
Packaging Box | Ingress Protection IP65 - Dust Tight, Water Resistant |
Part Status Active | Material Flammability Rating UL94 V-0 |
Connector Type | Features Backshell |
Number of Positions 4 | Shielding |
Shell Size - Insert XLR | Current Rating (Amps) 10A |
Mounting Type Free Hanging (In-Line) | Voltage Rating 50V |
Termination Solder Cup | Cable Opening 0.197" ~ 0.315" (5.00mm ~ 8.00mm) |
Fastening Type Latch Lock | Operating Temperature -30°C ~ 80°C |
Orientation N (Normal) | Backshell Material, Plating Zinc Die Cast, Nickel |
Primary Material Metal | Contact Material Brass |
Shell Material Zinc Die Cast | Insert Material Polyamide (PA), Nylon |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
In-Stock: 50
Check for Additional Incoming Stock
Quantity
All prices are in USD
Box
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 50 | $13.55020 | $677.51 |
| 100 | $12.90370 | $1,290.37 |
| 150 | $12.53993 | $1,880.99 |
| 250 | $12.09648 | $3,024.12 |
| 350 | $11.81294 | $4,134.53 |
| 500 | $11.51970 | $5,759.85 |
Tariff Status: Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
