Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NC4MX-BAG | |
|---|---|
DigiKey Part Number | 6473-NC4MX-BAG-ND |
Manufacturer | |
Manufacturer Product Number | NC4MX-BAG |
Description | CABLE END X SERIES 4 PIN MALE - |
Customer Reference | |
Detailed Description | 4 Position Circular Connector Plug, Male Pins Solder Cup |

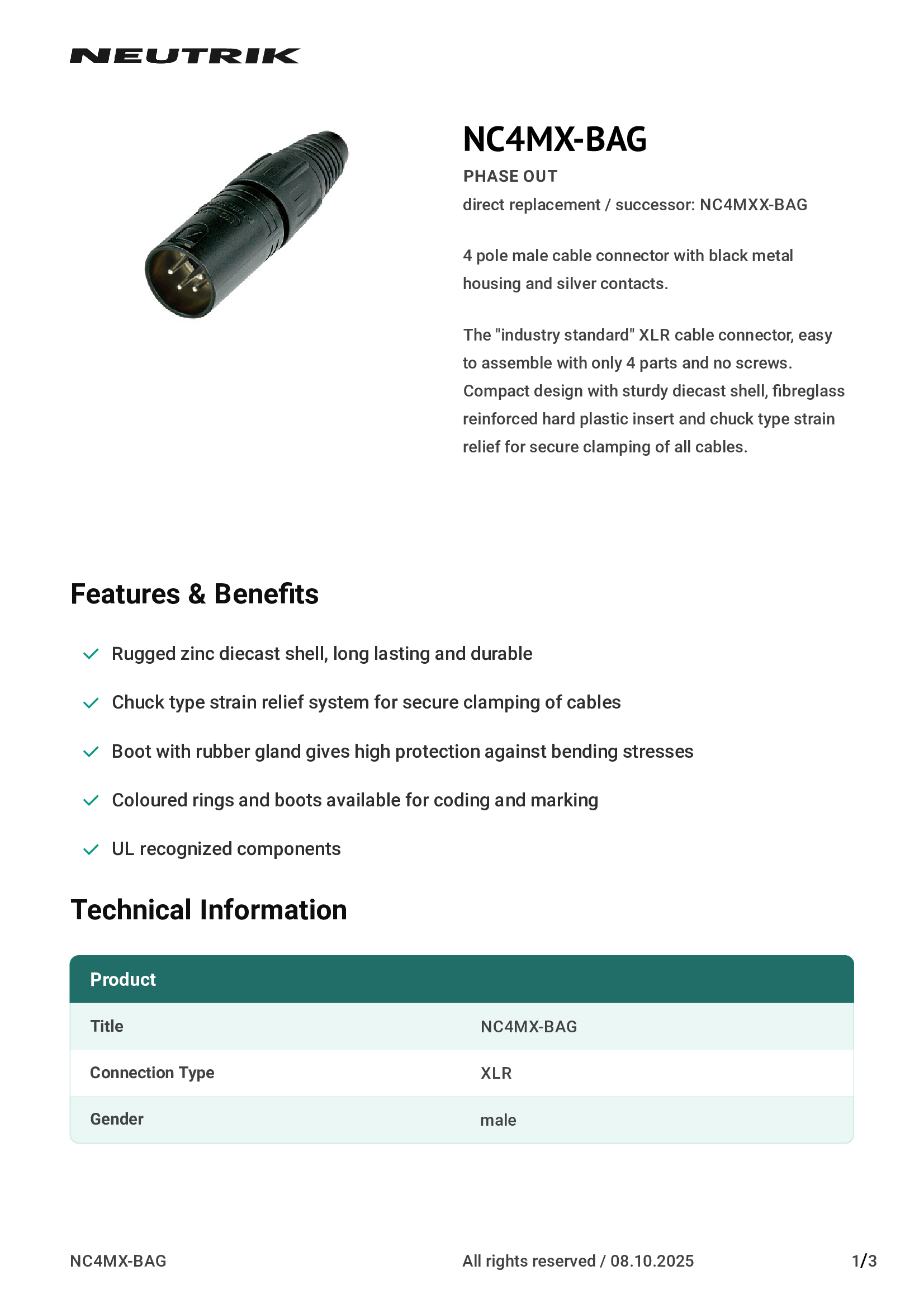

Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Contact Finish - Mating Silver |
Mfr | Color Black |
Series | Ingress Protection IP40 |
Packaging Bulk | Material Flammability Rating UL94 V-0 |
Part Status Obsolete | Features Backshell |
Connector Type | Shielding |
Number of Positions 4 | Current Rating (Amps) 10A |
Shell Size - Insert XLR | Voltage Rating 50V |
Mounting Type Free Hanging (In-Line) | Cable Opening 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
Termination Solder Cup | Operating Temperature -30°C ~ 80°C |
Fastening Type Latch Lock | Backshell Material, Plating Zinc Die Cast, Black KTL |
Orientation N (Normal) | Contact Material Brass |
Primary Material Metal | Contact Finish Thickness - Mating 78.7µin (2.00µm) |
Shell Material Zinc Die Cast | Insert Material Polyamide (PA66), Nylon 6/6 |
Shell Finish Black KTL |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
Substitutes (2)
| Part Number | Manufacturer | Quantity Available | DigiKey Part Number | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| NC4MXX-B | Neutrik Americas, Inc. | 101 | 6473-NC4MXX-B-ND | $8.57000 | Parametric Equivalent |
| NC4MXX-BAG | Neutrik Americas, Inc. | 52 | 6473-NC4MXX-BAG-ND | $7.54000 | Parametric Equivalent |
In-Stock: 300
Check for Additional Incoming Stock
Quantity
All prices are in USD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $7.70000 | $7.70 |
| 10 | $6.54400 | $65.44 |
| 25 | $6.13400 | $153.35 |
| 50 | $5.84100 | $292.05 |
| 100 | $5.56220 | $556.22 |
| 300 | $5.14747 | $1,544.24 |
Tariff Status: Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
